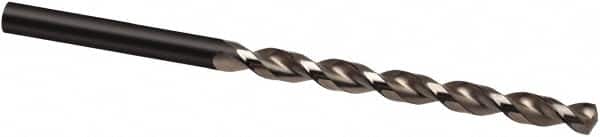

Taper Length Drill Bit: 0.1354″ Dia, 130 ° Bright/Uncoated, RH Cut, Parabolic Flute, Straight Shank, Series 336
Item #: 69343770
Brand: Guhring
Model #: 9003360034400
Product Specifications
| Drill Bit Size (mm) | 3.44 |
| Tool Material | Cobalt |
| Coating/Finish | Bright/Uncoated |
| Flute Length (mm) | 73.00 |
| Shank Type | Straight |
| Point Type | Cone Relief |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 112.00 |
| Shank Diameter (mm) | 3.44 |
| Drill Bit Size (Decimal Inch) | 0.1354 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 336 |
| Flute Length X Diameter Ratio | 10xD |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Spiral Type | Regular |
| Material Grade | M-35 |
