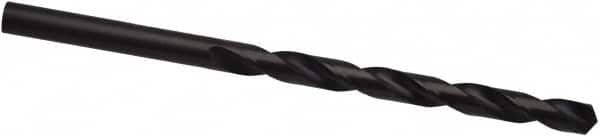

Taper Length Drill Bit: 0.2610″ Dia, 118 ° Coated, RH Cut, Spiral Flute, Cylindrical Shank, Series 317
Item #: 69343531
Brand: Guhring
Model #: 9003170066300
Product Specifications
| Drill Bit Size (Letter) | G |
| Tool Material | Cobalt |
| Coating/Finish | Coated |
| Flute Length (mm) | 97.00 |
| Shank Type | Cylindrical |
| Point Type | Cone Relief |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (mm) | 148.00 |
| Shank Diameter (mm) | 6.63 |
| Drill Bit Size (Decimal Inch) | 0.2610 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 317 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 3.4280 |
| Maximum Drilling Depth (mm) | 87.06 |
| Shank Length (mm) | 51.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-35 |
