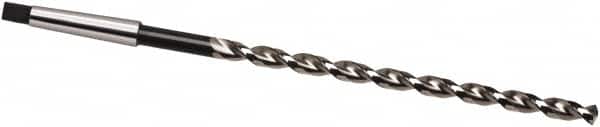

Taper Shank Drill Bit: 0.4921″ Dia, 1MT, 130 °, High Speed Steel Bright/Uncoated & Oxide, 8.0709″ Flute Length, 12.2047″ OAL, Cone Relief Point, Parabolic Flute
Item #: 69335156
Brand: Guhring
Model #: 9005260125000
Product Specifications
| Drill Bit Size (mm) | 12.50 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 1MT |
| Overall Length (mm) | 310.00 |
| Coating/Finish | Oxide; Bright/Uncoated |
| Flute Type | Parabolic |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Point Type | Cone Relief |
| Flute Length (mm) | 205.00 |
| Drill Bit Size (Decimal Inch) | 0.4921 |
| Flute Length (Decimal Inch) | 8.0709 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 12.2047 |
| Series | 526 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | h8 |
