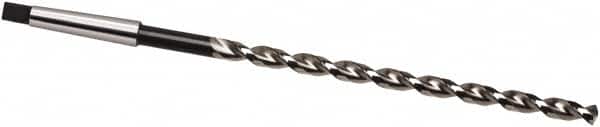

Taper Shank Drill Bit: 0.3937″ Dia, 1MT, 130 °, High Speed Steel Bright/Uncoated & Oxide, 9.252″ Flute Length, 14.1732″ OAL, Cone Relief Point, Parabolic Flute
Item #: 69334944
Brand: Guhring
Model #: 9005270100000
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 1MT |
| Overall Length (mm) | 360.00 |
| Coating/Finish | Oxide; Bright/Uncoated |
| Flute Type | Parabolic |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Point Type | Cone Relief |
| Flute Length (mm) | 235.00 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Flute Length (Decimal Inch) | 9.2520 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 14.1732 |
| Series | 527 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | h8 |
