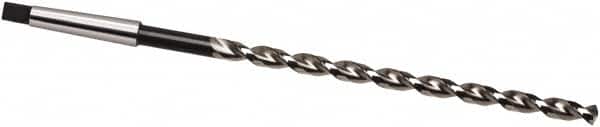

Guhring - 1-3/32", 3MT 130° Point High Speed Steel Taper Shank Drill Bit - Oxide Finish, 385mm Flute Length, 580mm OAL, Parabolic Flute, Series 527
Item #: 69334696
Brand: Guhring
Model #: 9005270277800
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 1-3/32 |
| Drill Bit Size (Decimal Inch) | 1.0938 |
| Drill Point Angle | 130 |
| Shank Taper Designation | 3MT |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide |
| Flute Type | Parabolic |
| Overall Length (mm) | 580.00 |
| Flute Length (mm) | 385.00 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Web Thinning | Web-Thinning |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M2 |
| Series/List | 527 |
