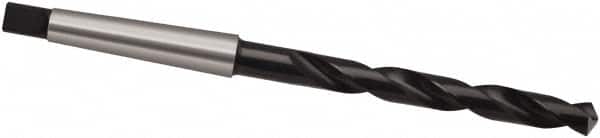

Guhring - 28mm, 3MT 118° Point High Speed Steel Taper Shank Drill Bit - Bright/Oxide Finish, 170mm Flute Length, 291mm OAL, Spiral Flute, Series 245
Item #: 69332823
Brand: Guhring
Model #: 9002450280000
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 28.00 |
| Drill Bit Size (Decimal Inch) | 1.1024 |
| Drill Point Angle | 118 |
| Shank Taper Designation | 3MT |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright/Oxide |
| Flute Type | Spiral |
| Overall Length (mm) | 291.00 |
| Flute Length (mm) | 170.00 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Web Thinning | Web-Thinning |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M2 |
| Series/List | 245 |
