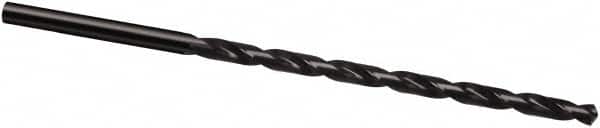

Extra Length Drill Bit: 0.1695″ Dia, 118 °, High Speed Steel Oxide Finish, Spiral Flute, Straight-Cylindrical Shank, Series 235
Item #: 69323319
Brand: Guhring
Model #: 9002350043000
Product Specifications
| Drill Bit Size (Wire) | #18 |
| Overall Length (mm) | 185.00 |
| Flute Length (mm) | 125.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Drill Point Angle | 118 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Spiral |
| Series | 235 |
| Point Type | N |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h8 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Aluminum |
| Secondary Workpiece Material Code | N |
| Standards | DIN 1869 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size (Decimal Inch) | 0.1695 |
| Shank Diameter (mm) | 4.30 |
| Shank Length (mm) | 60.00 |
| Flute By Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 4.6670 |
| Maximum Drilling Depth (mm) | 118.55 |
