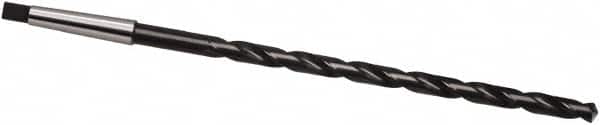

Taper Shank Drill Bit: 0.5313″ Dia, 1MT, 118 °, High Speed Steel Oxide Finish, 8.6614″ Flute Length, 12.7953″ OAL, Cone Relief Point, Spiral Flute
Item #: 69319622
Brand: Guhring
Model #: 9002660134900
Product Specifications
| Drill Bit Size (Inch) | 17/32 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 1MT |
| Overall Length (mm) | 325.00 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | Cone Relief |
| Flute Length (mm) | 220.00 |
| Drill Bit Size (Decimal Inch) | 0.5313 |
| Flute Length (Decimal Inch) | 8.6614 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 12.7953 |
| Series | 266 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | h8 |
