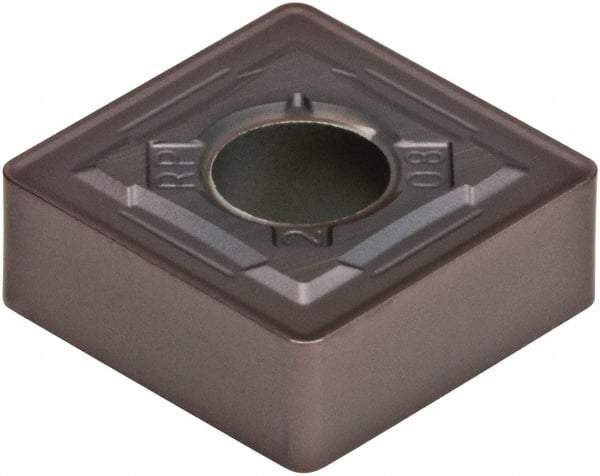

Kennametal - SNMG544 RP Grade KCU25 Carbide Turning Insert - AlTiN Finish, 90° Square, 5/8" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 69260677
Brand: Kennametal
Model #: 4121688
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 544 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Chip Breaker | RP |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | SNMG150616RP |
| Relief Angle | 0 |
| Manufacturers Catalog Number | SNMG544RP |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
