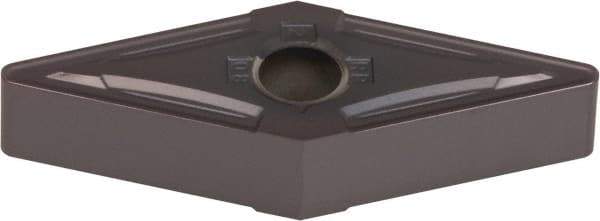

Kennametal - VNMG332 RP Grade KCU25 Carbide Turning Insert - AlTiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 69260529
Brand: Kennametal
Model #: 4121716
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Chip Breaker | RP |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160408RP |
| Relief Angle | 0 |
| Manufacturers Catalog Number | VNMG332RP |
| Included Angle | 35 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
