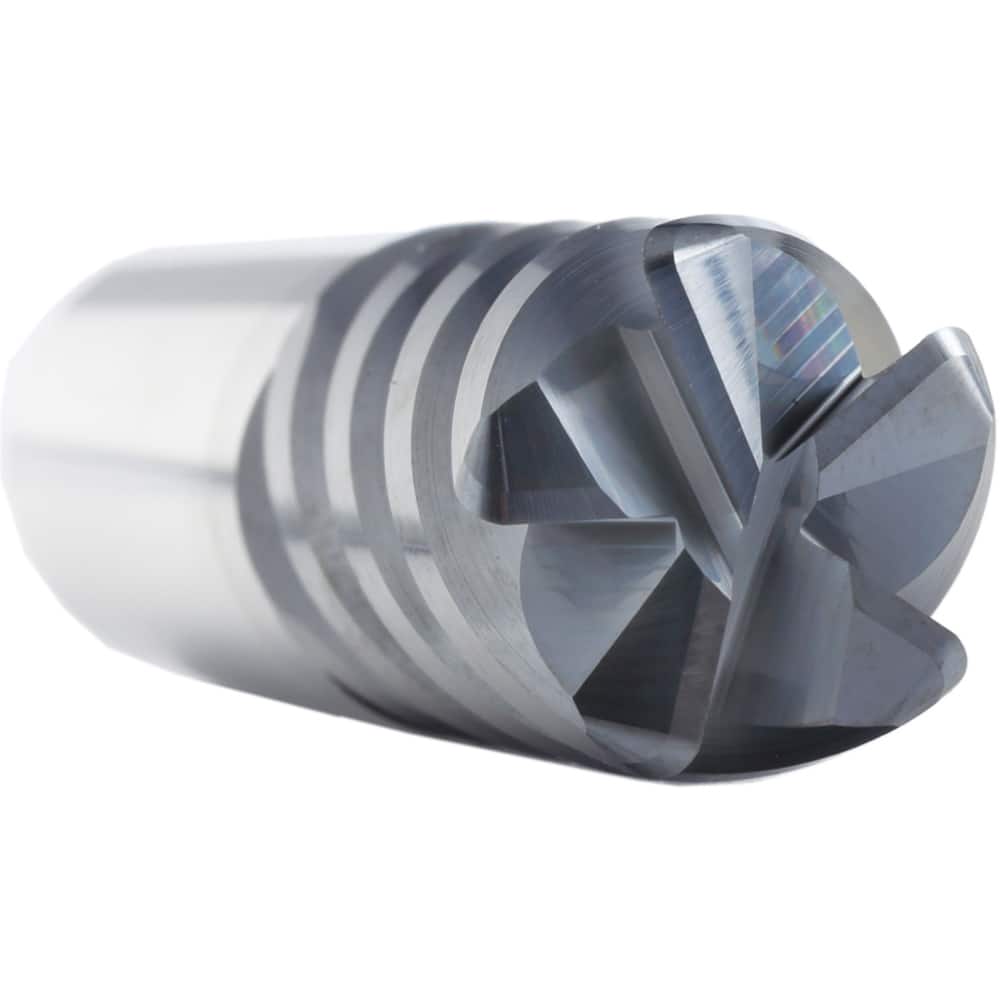

Corner Radius End Mill: 3/4″ Dia, 1-5/8″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 4″ OAL, 5″ Shank Dia, 45 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series SM5F
Item #: 69246585
Brand: Supermill
Model #: SM5F750-030
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1-5/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 5 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Maximum Helix Angle | 45.00 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SM5F |
| Single Or Double End | Single |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
