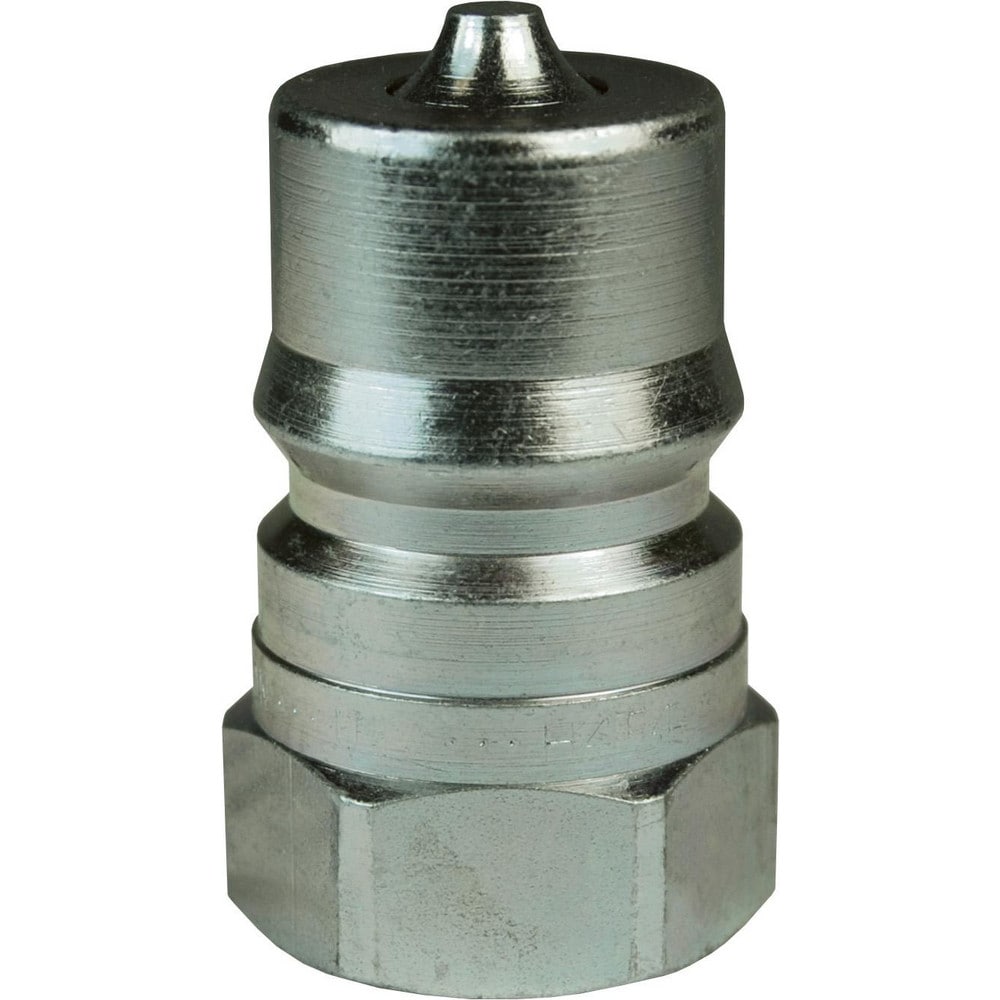

Hydraulic Hose Fittings & Couplings; Type: H-Series ISO-B Female Plug; Fitting Type: Female Plug; Hose Inside Diameter (Decimal Inch): 1.0625; Hose Size: 1-1/16
Item #: 56586068
Brand: Dixon Valve & Coupling
Model #: H6OF6
Product Specifications
| Type | H-Series ISO-B Female Plug |
| Fitting Type | Female Plug |
| Hose Inside Diameter (Decimal Inch) | 1.0625 |
| Hose Size | 1-1/16 |
| Material | Steel |
| Thread Type | SAE |
| Thread Size (Inch) | 1-1/16-12 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Working Pressure (Psi - 3 Decimals) | 4000.000 |
| Overall Length (Decimal Inch) | 2.5800 |
| Epa Watersense Certified | No |
| Series | H ISO-B |
| Valve/Non-Valved | Valved |
| Body Diameter (Inch) | 3/4 |
| Hose Diameter (Inch) | 1-1/16 |
| UNSPSC Code | 40141734 |
| Type | H-Series ISO-B Female Plug |
| Fitting Type | Female Plug |
| Hose Inside Diameter (Decimal Inch) | 1.0625 |
| Hose Size | 1-1/16 |
| Material | Steel |
| Thread Type | SAE |
| Thread Size (Inch) | 1-1/16-12 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Working Pressure (Psi - 3 Decimals) | 4000.000 |
| Overall Length (Decimal Inch) | 2.5800 |
| Epa Watersense Certified | No |
| Series | H ISO-B |
| Valve/Non-Valved | Valved |
| Body Diameter (Inch) | 3/4 |
| Hose Diameter (Inch) | 1-1/16 |
| UNSPSC Code | 40141734 |
| MSC Part # | 56586068 |
| Mfr Part # | H6OF6 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
