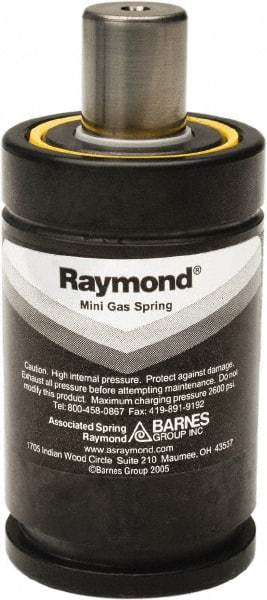

Associated Spring Raymond - M6 Int Rod, M6 Fill Port, M8 Mt Hole, 25mm Rod Diam, 45.2mm Diam, 80mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 112mm Body Length, 192mm OAL, 2,675 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69160372
Brand: Associated Spring Raymond
Model #: X750-080
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M8 |
| Internal Rod Thread (mm) | M6 |
| Fill Port | M6 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 45.20 |
| Body Length (mm) | 112 |
| Body Length (Decimal Inch) | 4.4094 |
| Diameter (Decimal Inch) | 1.7795 |
| Spring Force Initial (N) | 7406 |
| Spring Force Initial (lbf) | 1665 |
| Spring Force Full Stroke (N) | 11899 |
| Spring Force Full Stroke (lbf) | 2675 |
| Rod Diameter (mm) | 25 |
| Rod Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 192 |
| Overall Length (Decimal Inch) | 7.5591 |
| Maximum Stroke (mm) | 80 |
| Maximum Stroke (Decimal Inch) | 3.1496 |
