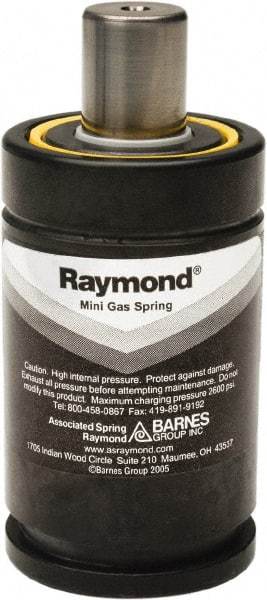

Associated Spring Raymond - M6 Int Rod, M6 Fill Port, M8 Mt Hole, 28mm Rod Diam, 50.2mm Diam, 38mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 76mm Body Length, 114mm OAL, 3,260 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69159705
Brand: Associated Spring Raymond
Model #: X1000-038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M8 |
| Internal Rod Thread (mm) | M6 |
| Fill Port | M6 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 50.20 |
| Body Length (mm) | 76 |
| Body Length (Decimal Inch) | 2.9921 |
| Diameter (Decimal Inch) | 1.9764 |
| Spring Force Initial (N) | 9199 |
| Spring Force Initial (lbf) | 2068 |
| Spring Force Full Stroke (N) | 14501 |
| Spring Force Full Stroke (lbf) | 3260 |
| Rod Diameter (mm) | 28 |
| Rod Diameter (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 114 |
| Overall Length (Decimal Inch) | 4.4882 |
| Maximum Stroke (mm) | 38 |
| Maximum Stroke (Decimal Inch) | 1.4961 |
