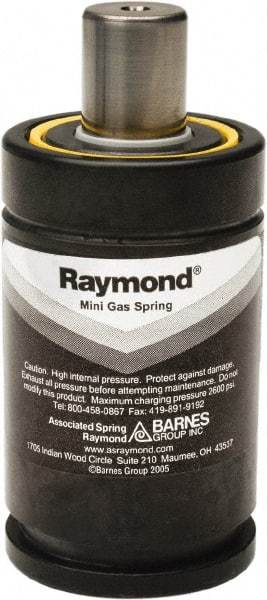

Associated Spring Raymond - M6 Int Rod, G1/8 Fill Port, M8 Mt Hole, 20mm Rod Diam, 45.2mm Diam, 10mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 95mm Body Length, 105mm OAL, 1,350 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69158459
Brand: Associated Spring Raymond
Model #: TU 500-010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M8 |
| Internal Rod Thread (mm) | M6 |
| Fill Port | G1/8 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 45.20 |
| Body Length (mm) | 95 |
| Body Length (Decimal Inch) | 3.7402 |
| Diameter (Decimal Inch) | 1.7795 |
| Spring Force Initial (N) | 4693 |
| Spring Force Initial (lbf) | 1055 |
| Spring Force Full Stroke (N) | 6005 |
| Spring Force Full Stroke (lbf) | 1350 |
| Rod Diameter (mm) | 20 |
| Rod Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 105 |
| Overall Length (Decimal Inch) | 4.1339 |
| Maximum Stroke (mm) | 10 |
| Maximum Stroke (Decimal Inch) | 0.3937 |
