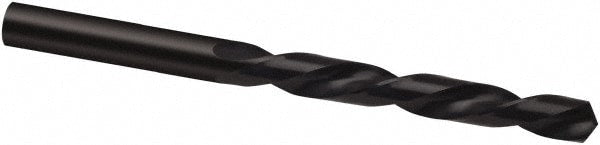

Jobber Drill: 5/32" Dia, 118 deg Point, Cobalt
Item #: 69340727
Brand: Guhring
Model #: 9003080039700
Product Specifications
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.4219 |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Proprietary Coating/Finish | Steam Oxide |
| Series | 308 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 3.97 |
| Maximum Drilling Depth (Decimal Inch) | 2.7500 |
| Maximum Drilling Depth (mm) | 37.05 |
| Shank Length (mm) | 32 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.4219 |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Proprietary Coating/Finish | Steam Oxide |
| Series | 308 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 3.97 |
| Maximum Drilling Depth (Decimal Inch) | 2.7500 |
| Maximum Drilling Depth (mm) | 37.05 |
| Shank Length (mm) | 32 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69340727 |
| Mfr Part # | 9003080039700 |
| Country of Origin Country of Origin is subject to change | Germany |
