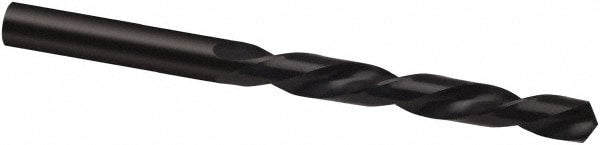

Jobber Drill: #6, 118 deg Point, Cobalt
Item #: 69340537
Brand: Guhring
Model #: 9003080051800
Product Specifications
| Drill Bit Size (Wire) | #6 |
| Drill Bit Size (Decimal Inch) | 0.2040 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Spiral Type | Regular |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Proprietary Coating/Finish | Steam Oxide |
| Series | 308 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 5.18 |
| Maximum Drilling Depth (Decimal Inch) | 1.3750 |
| Maximum Drilling Depth (mm) | 44.23 |
| Shank Length (mm) | 34 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Wire) | #6 |
| Drill Bit Size (Decimal Inch) | 0.2040 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Spiral Type | Regular |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Proprietary Coating/Finish | Steam Oxide |
| Series | 308 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 5.18 |
| Maximum Drilling Depth (Decimal Inch) | 1.3750 |
| Maximum Drilling Depth (mm) | 44.23 |
| Shank Length (mm) | 34 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69340537 |
| Mfr Part # | 9003080051800 |
| Country of Origin Country of Origin is subject to change | Germany |
