![Jobber Drill: #3, 118 deg Point, Cobalt](http://benchmarktooling.com/cdn/shop/files/8021848-21_334d10b9-a6bf-4b7a-9dd1-a4b38a3ada12_1024x1024.jpg?v=1738653544)

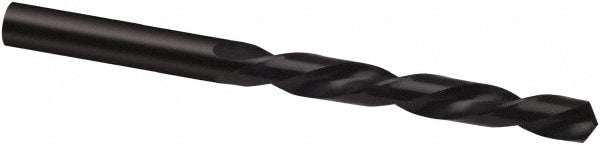

Jobber Drill: #3, 118 deg Point, Cobalt
Item #: 69340479
Brand: Guhring
Model #: 9003080054100
Product Specifications
Drill Bit Size (Wire) | #3 |
Drill Bit Size (Decimal Inch) | 0.2130 |
Drill Bit Material | Cobalt |
Drill Point Angle (Degrees) | 118 |
Coating/Finish | Straw |
Flute Type | Regular Spiral |
Cutting Direction | Left Hand |
Point Type | Cone Relief |
Primary Workpiece Material | Cast Iron; Steel |
Coolant Through | No |
Number of Flutes | 2 |
Primary Workpiece Material Code | P; K |
Shank Diameter (Decimal Inch) | 0.0938 |
Overall Length (mm) | 93.00 |
Overall Length (Decimal Inch) | 3.6614 |
Spiral Type | Regular |
Flute Length (mm) | 57.00 |
Flute Length (Decimal Inch) | 2.2441 |
Proprietary Coating/Finish | Steam Oxide |
Series | 308 |
Flute By Diameter Ratio | 5xD |
Shank Diameter (mm) | 5.41 |
Maximum Drilling Depth (Decimal Inch) | 3.7500 |
Maximum Drilling Depth (mm) | 48.89 |
Shank Length (mm) | 36 |
Drill Bit Diameter Tolerance | h8 |
Web Thinning | Web-Thinned |
Shank Type | Straight |
Tool Performance | General Purpose |
Standards | DIN 338 |
Drill Bit Grade | General Purpose |
Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
Specification Designation | DIN |
UNSPSC Code | 23241634 |
Drill Bit Size (Wire) | #3 |
Drill Bit Size (Decimal Inch) | 0.2130 |
Drill Bit Material | Cobalt |
Drill Point Angle (Degrees) | 118 |
Coating/Finish | Straw |
Flute Type | Regular Spiral |
Cutting Direction | Left Hand |
Point Type | Cone Relief |
Primary Workpiece Material | Cast Iron; Steel |
Coolant Through | No |
Number of Flutes | 2 |
Primary Workpiece Material Code | P; K |
Shank Diameter (Decimal Inch) | 0.0938 |
Overall Length (mm) | 93.00 |
Overall Length (Decimal Inch) | 3.6614 |
Spiral Type | Regular |
Flute Length (mm) | 57.00 |
Flute Length (Decimal Inch) | 2.2441 |
Proprietary Coating/Finish | Steam Oxide |
Series | 308 |
Flute By Diameter Ratio | 5xD |
Shank Diameter (mm) | 5.41 |
Maximum Drilling Depth (Decimal Inch) | 3.7500 |
Maximum Drilling Depth (mm) | 48.89 |
Shank Length (mm) | 36 |
Drill Bit Diameter Tolerance | h8 |
Web Thinning | Web-Thinned |
Shank Type | Straight |
Tool Performance | General Purpose |
Standards | DIN 338 |
Drill Bit Grade | General Purpose |
Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
Specification Designation | DIN |
UNSPSC Code | 23241634 |
MSC Part # | 69340479 |
Mfr Part # | 9003080054100 |
Country of Origin Country of Origin is subject to change | Germany |
