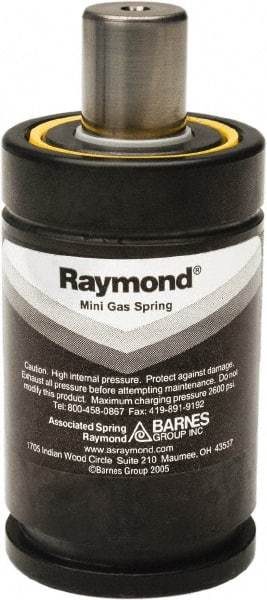

Associated Spring Raymond - 25mm Rod Diam, 45.2mm Diam, 50mm Max Stroke, Nitrogen Gas Spring Cylinder - 82mm Body Length, 132mm OAL, 2,650 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69129716
Brand: Associated Spring Raymond
Model #: X750-050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 45.20 |
| Body Length (mm) | 82 |
| Body Length (Decimal Inch) | 3.2283 |
| Diameter (Decimal Inch) | 1.7795 |
| Spring Force Initial (N) | 7406 |
| Spring Force Initial (lbf) | 1665 |
| Spring Force Full Stroke (N) | 11788 |
| Spring Force Full Stroke (lbf) | 2650 |
| Rod Diameter (mm) | 25 |
| Rod Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 132 |
| Overall Length (Decimal Inch) | 5.1969 |
| Maximum Stroke (mm) | 50 |
| Maximum Stroke (Decimal Inch) | 1.9685 |
