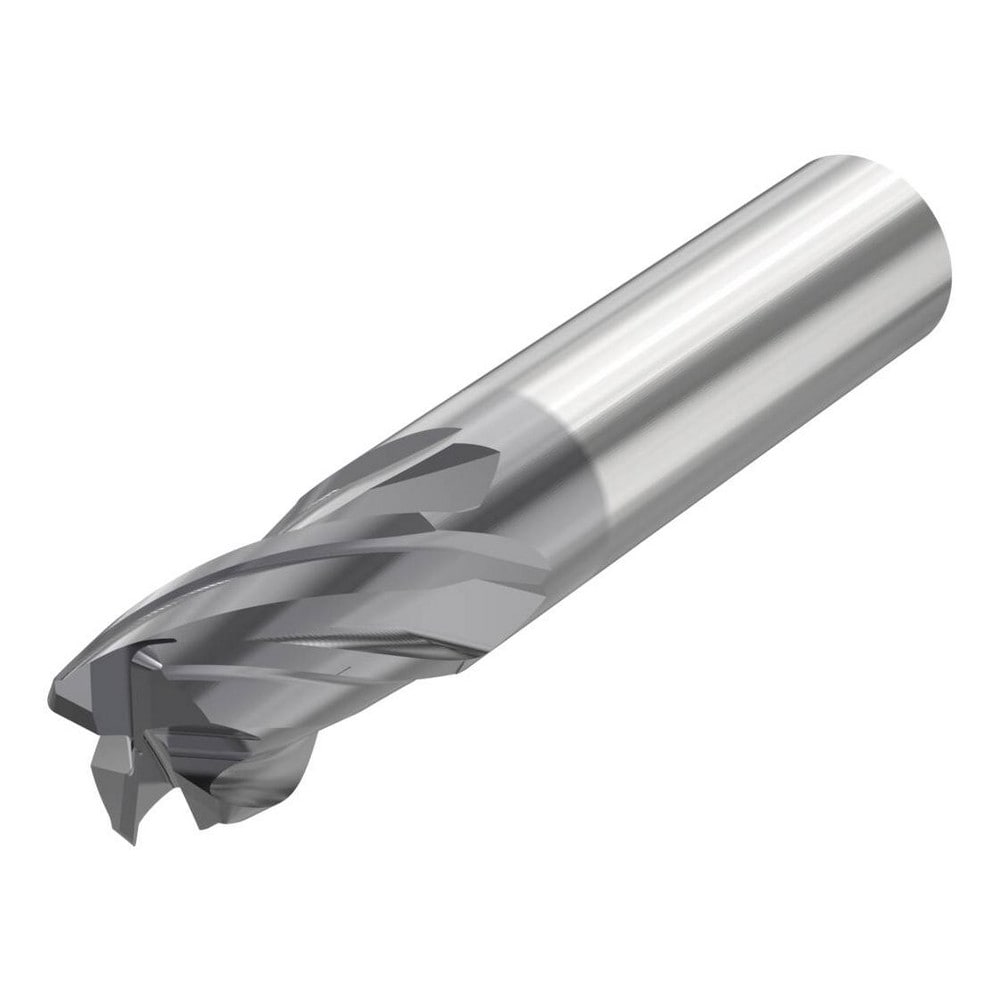

Corner Radius End Mill: 1/4" Dia, 3/8" LOC, 0.0300" Radius, 4 Flute, Solid Carbide
Item #: 82810011
Brand: Seco
Model #: 10201812
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | SIRON-A |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Standard |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/8 |
| Mill Diameter Tolerance | e8 |
| Shank Diameter Tolerance | h5 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M; N |
| Series | JSE514 |
| Material Application | General Purpose |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | Medium |
| Manufacturers Catalog Number | 10201812 |
| Country of Origin | UNITED STATES |
