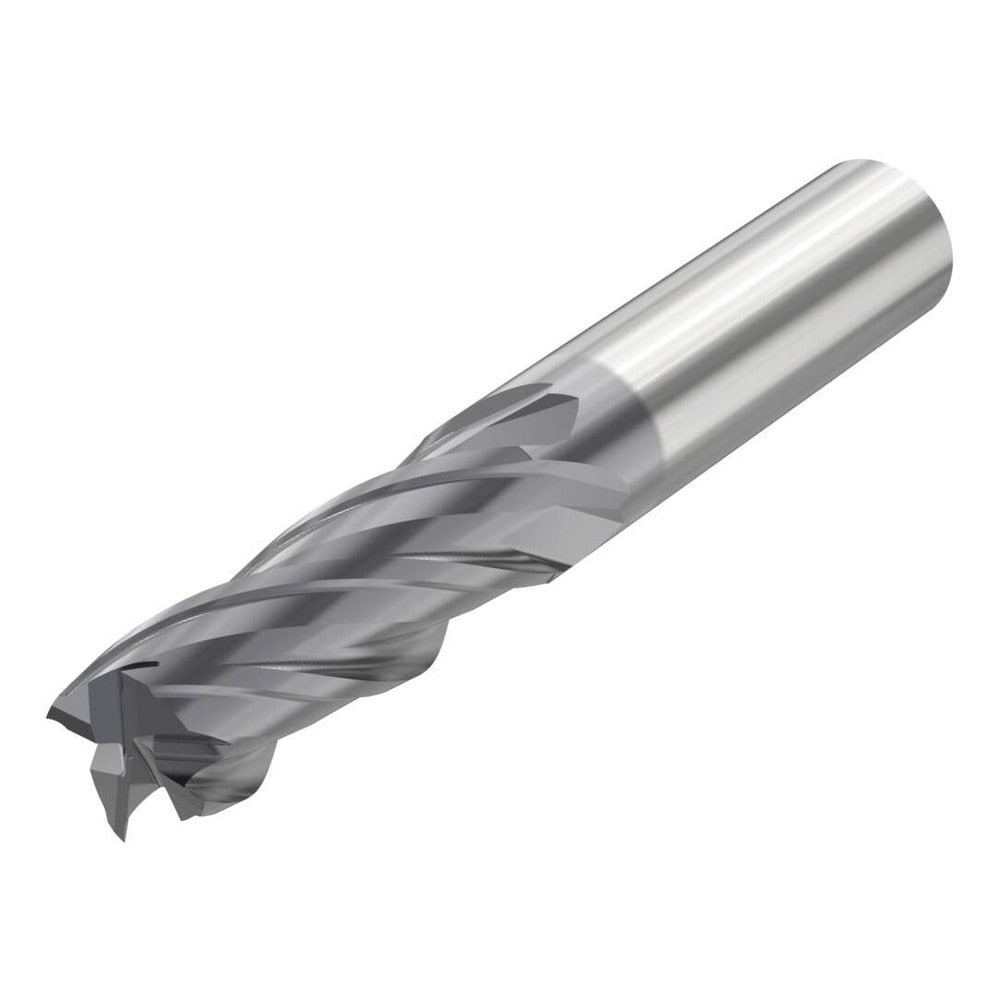

Square End Mill: 4 Flute, Solid Carbide
Item #: 82878372
Brand: Seco
Model #: 10201840
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.2500 |
| Length of Cut (Inch) | 2-1/4 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | SIRON-A |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 35 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coating/Finish | SIRON-A |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Length Type | Regular |
| Reach Length (Inch) | 2-1/4 |
| Reach Length (Decimal Inch) | 2.2500 |
| Length Of Cut Range (Decimal Inch) | 2.0000+ |
| Mill Diameter Tolerance | e8 |
| Shank Diameter Tolerance | h5 |
| Series | JSE514 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
