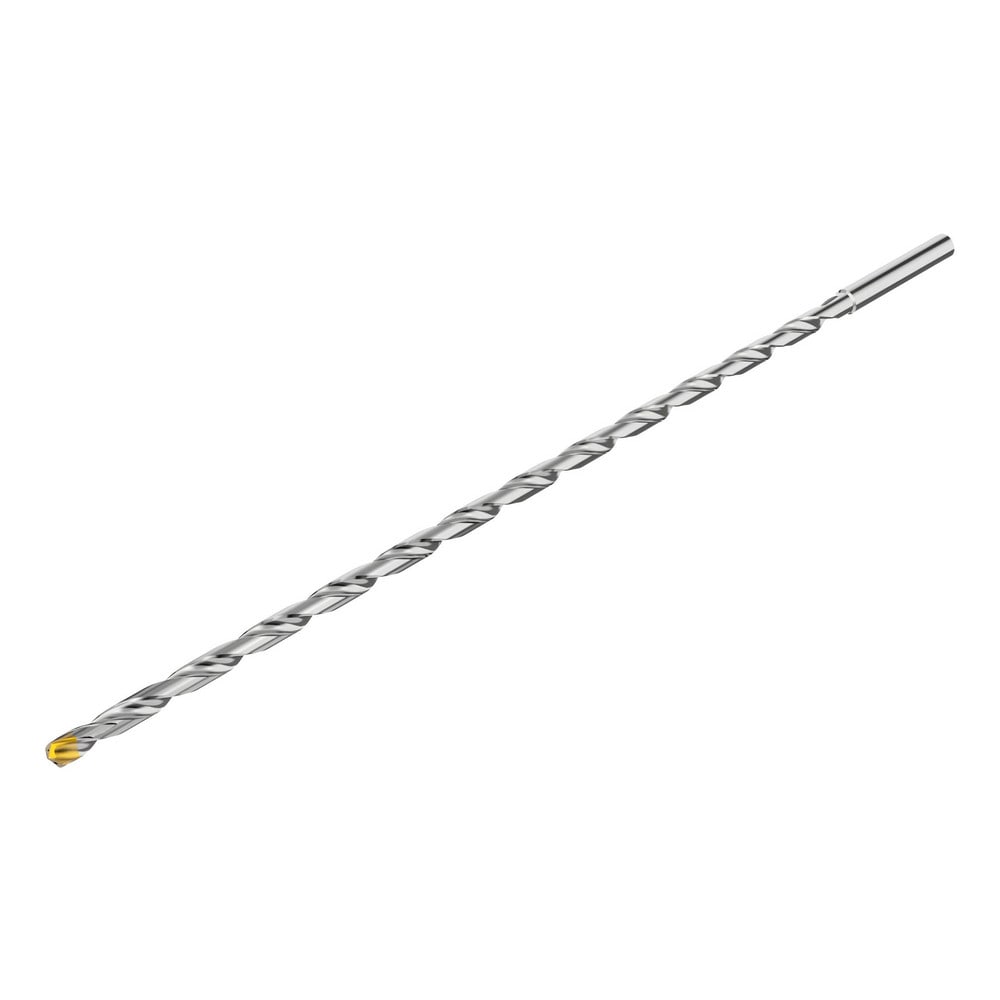

Extra Length Drill Bit: 133 °, Solid Carbide
Item #: 82808387
Brand: Seco
Model #: 10188284
Product Specifications
| Drill Bit Size (mm) | 3.00 |
| Overall Length (mm) | 188 |
| Tool Material | Solid Carbide |
| Coating/Finish | PVD |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Drill Point Angle | 133 |
| Flute Length (mm) | 157.50 |
| Point Type | Standard |
| Series | SD2050A |
| Cutting Direction | Right Hand |
| Tool Application | Long Reach Drilling |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Primary Workpiece Material Code | P; H; K; M |
| Secondary Workpiece Material | Aluminum Alloy; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; N |
| Standards | IT09 |
| Drill Bit Grade | General Purpose |
| Shank Diameter (mm) | 4.0000 |
| Shank Length (mm) | 27.000 |
| Flute By Diameter Ratio | 50xD |
| Maximum Drilling Depth (mm) | 150.00 |
| Material Grade | P5 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241637 |
| Country of Origin | Sweden |
