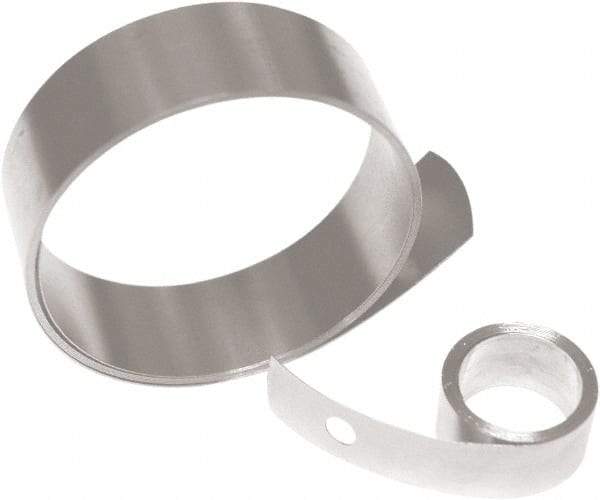

Associated Spring Raymond - 0.012" Thick x 45" Long, 9.29 N Capacity Constant Force Spring - 3/4" Wide, 1.6" ID of Reflection, 1.82" Initial Extension, 0.2" End Hole Diam
Item #: 69079283
Brand: Associated Spring Raymond
Model #: CF0450209
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Width (mm) | 19.05 |
| Thickness (mm) | 0.30 |
| Length (mm) | 1143 |
| Inside Diameter of Reflection (mm) | 40.64 |
| Load Capacity (N) | 9.28999996 |
| Initial Extension (mm) | 46.23 |
| Inside Diameter of Reflection (Decimal Inch) | 1.6000 |
| Initial Extension (Decimal Inch) | 1.8200 |
| End Hole Diameter (Decimal Inch) | 0.2000 |
| End Hole Diameter (mm) | 5.08 |
| Length (Decimal Inch) | 45 |
| Thickness (Decimal Inch) | 0.0120 |
| Width (Decimal Inch) | 3/4 |
