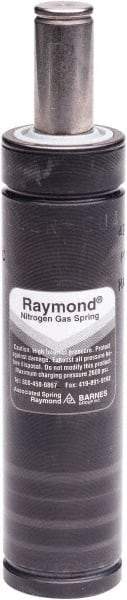

Associated Spring Raymond - M6 Fill Port, M6 Mt Hole, 20mm Rod Diam, 32.1mm Diam, 6mm Max Stroke, Nitrogen Gas Spring Cylinder - 57mm Body Length, 63mm OAL, 2,200 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69079077
Brand: Associated Spring Raymond
Model #: CU 740-006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M6 |
| Fill Port | M6 |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 32.10 |
| Body Length (mm) | 57 |
| Body Length (Decimal Inch) | 2.2441 |
| Diameter (Decimal Inch) | 1.2638 |
| Spring Force Initial (N) | 7384 |
| Spring Force Initial (lbf) | 1660 |
| Spring Force Full Stroke (N) | 9786 |
| Spring Force Full Stroke (lbf) | 2200 |
| Rod Diameter (mm) | 20 |
| Rod Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 63 |
| Overall Length (Decimal Inch) | 2.4803 |
| Maximum Stroke (mm) | 6 |
| Maximum Stroke (Decimal Inch) | 0.2362 |
