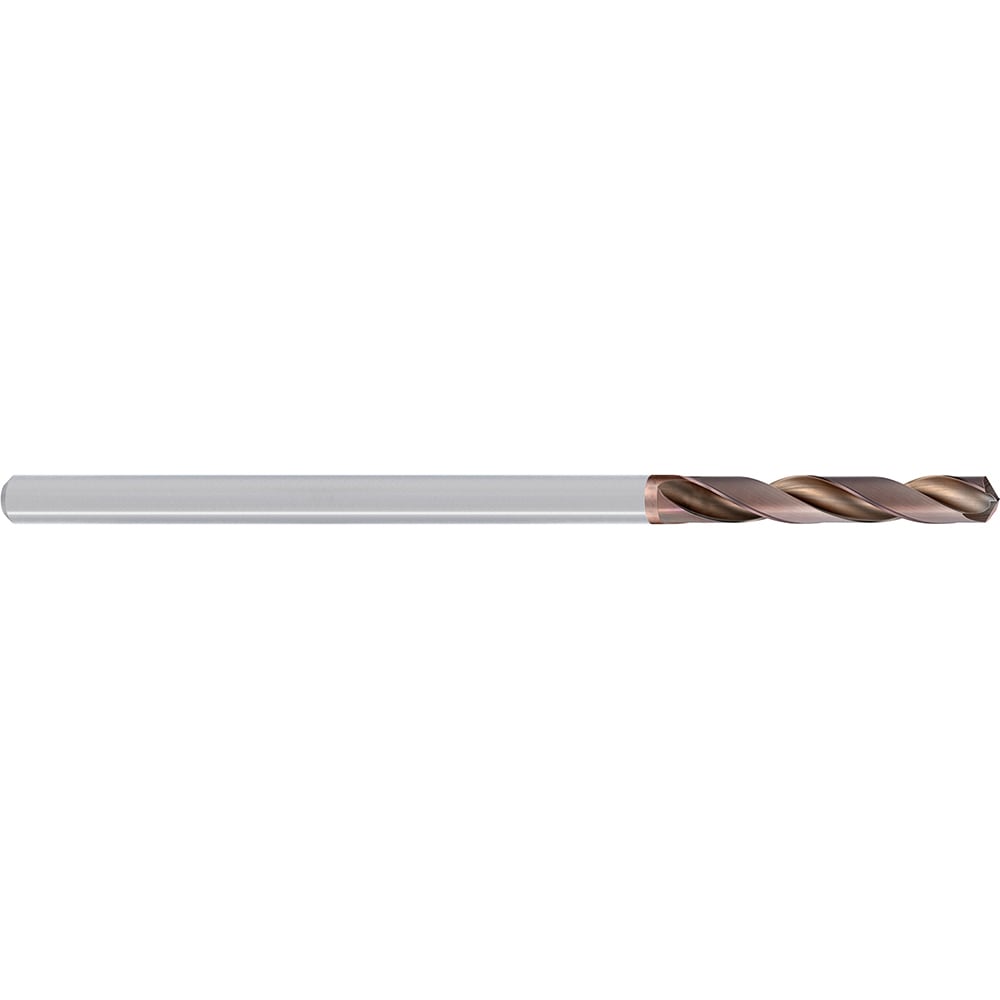

Extra Length Drill Bit: 0.1562", 140 °, Carbide
Item #: 74084435
Brand: Mitsubishi
Model #: 662311
Product Specifications
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (mm) | 3.97 |
| Overall Length (mm) | 55.7300 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 20.70 |
| Point Type | X-Thinning |
| Series | MVE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Bronze; Brass; Carbon Steel; Iron; Steel; High Strength Bronze; Tempered Steel; Hard Material; Stainless Steel; Cast Iron; Structural Steel; Superalloys & Titanium; Nickel; Copper; Nickel Alloy; Hardened Steel |
| Secondary Workpiece Material Code | S; H; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Point Length (mm) | 0.71 |
| Drill Point Length (Decimal Inch) | 0.0280 |
| Overall Length (Decimal Inch) | 2.1940 |
| Shank Diameter (Decimal Inch) | 0.236 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (Decimal Inch) | 1.2910 |
| Shank Length (mm) | 32.790 |
| Flute Length (Decimal Inch) | 0.8150 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 0.3400 |
| Maximum Drilling Depth (mm) | 8.64 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (mm) | 3.97 |
| Overall Length (mm) | 55.7300 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 20.70 |
| Point Type | X-Thinning |
| Series | MVE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Bronze; Brass; Carbon Steel; Iron; Steel; High Strength Bronze; Tempered Steel; Hard Material; Stainless Steel; Cast Iron; Structural Steel; Superalloys & Titanium; Nickel; Copper; Nickel Alloy; Hardened Steel |
| Secondary Workpiece Material Code | S; H; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Point Length (mm) | 0.71 |
| Drill Point Length (Decimal Inch) | 0.0280 |
| Overall Length (Decimal Inch) | 2.1940 |
| Shank Diameter (Decimal Inch) | 0.236 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (Decimal Inch) | 1.2910 |
| Shank Length (mm) | 32.790 |
| Flute Length (Decimal Inch) | 0.8150 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 0.3400 |
| Maximum Drilling Depth (mm) | 8.64 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| MSC Part # | 74084435 |
| Mfr Part # | 662311 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
