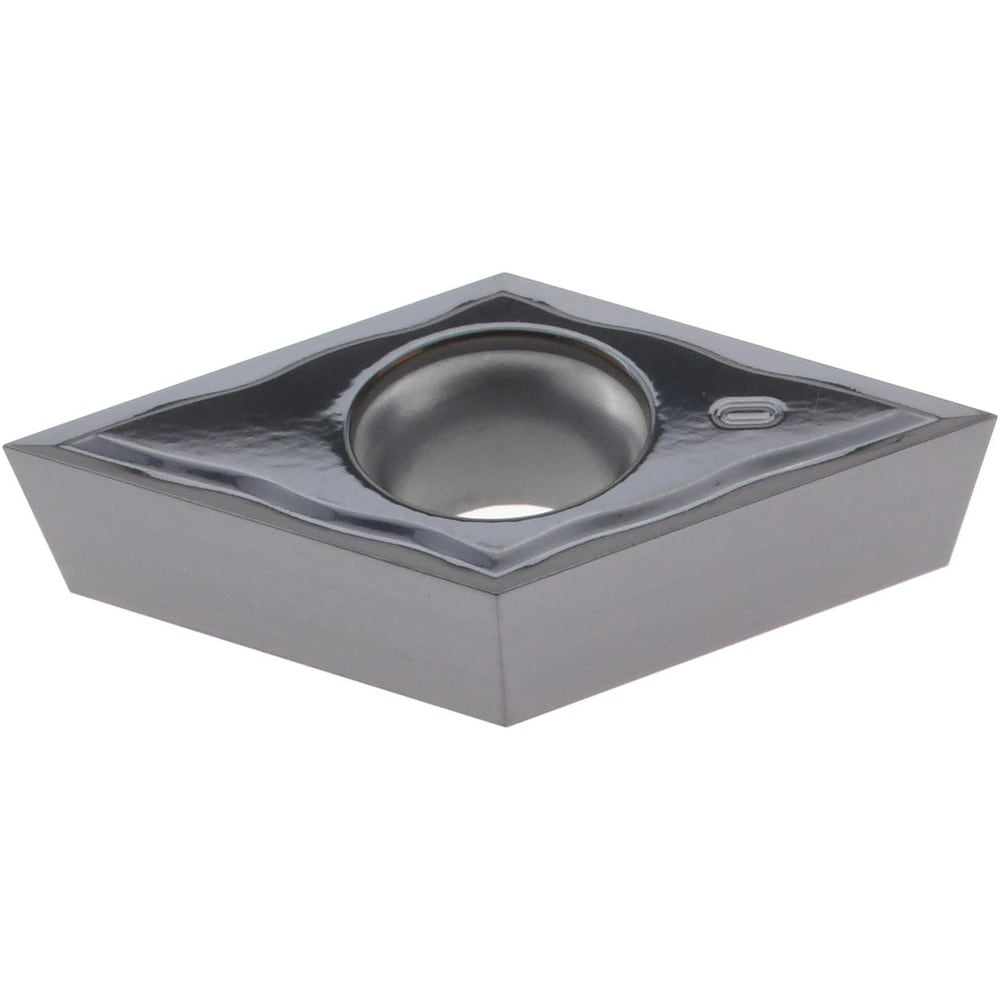

Turning Insert: DCGT11T300ENEF ACM20K, Carbide
Item #: 75297713
Brand: Accupro
Model #: 75297713
Product Specifications
| ANSI Insert Code | DCGT |
| ISO Insert Code | DCGT070201 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (mm) | 0.00 |
| Included Angle | 55 |
| Manufacturer Grade | ACM20K |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1752 |
| Maximum Depth of Cut (mm) | 1.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0531 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; M |
| Iso Code | DCGT11T300 |
| Standards | ANSI Code: DCGT32.5X0 |
| Chip Breaker | EN-EF |
| ISO Size Code | 070201 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| ANSI Insert Code | DCGT |
| ISO Insert Code | DCGT070201 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (mm) | 0.00 |
| Included Angle | 55 |
| Manufacturer Grade | ACM20K |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1752 |
| Maximum Depth of Cut (mm) | 1.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0531 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; M |
| Iso Code | DCGT11T300 |
| Standards | ANSI Code: DCGT32.5X0 |
| Chip Breaker | EN-EF |
| ISO Size Code | 070201 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| MSC Part # | 75297713 |
| Mfr Part # | 75297713 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
