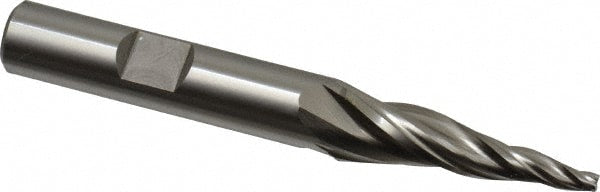

Tapered End Mill: 7 deg Angle per Side, 3/32" Small Dia, 1-1/4" LOC, 3 Flute, Cobalt, Square End
Item #: 75025734
Brand: OSG
Model #: 5962300
Product Specifications
| Length of Cut (Inch) | 1-1/4 |
| Taper Angle Per Side | 7.00 |
| End Mill Material | Cobalt |
| End Shape | Square |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Shank Diameter (Inch) | 3/8 |
| Small End Diameter (Inch) | 3/32 |
| Helix Angle | 25 |
| Material Grade | M42 |
| Flute Direction | Right Hand |
| Series | 596 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 3 |
| UNSPSC Code | 27112803 |
| Length of Cut (Inch) | 1-1/4 |
| Taper Angle Per Side | 7.00 |
| End Mill Material | Cobalt |
| End Shape | Square |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Shank Diameter (Inch) | 3/8 |
| Small End Diameter (Inch) | 3/32 |
| Helix Angle | 25 |
| Material Grade | M42 |
| Flute Direction | Right Hand |
| Series | 596 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 3 |
| UNSPSC Code | 27112803 |
| MSC Part # | 75025734 |
| Mfr Part # | 5962300 |
| Country of Origin Country of Origin is subject to change | Japan |
