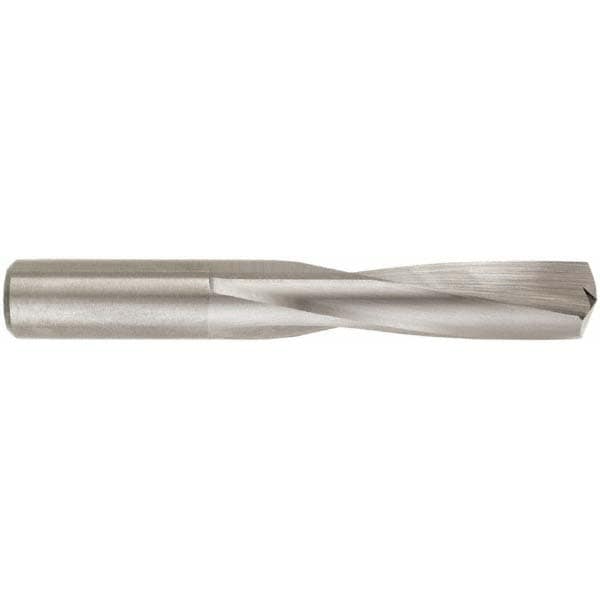

Screw Machine Length Drill Bit: Size #24, 135 deg Point, Solid Carbide
Item #: 70392808
Brand: M.A. Ford
Model #: 20515200
Product Specifications
| Drill Bit Size (Wire) | #24 |
| Drill Bit Size (Decimal Inch) | 0.1520 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Slow |
| Flute Type | Slow Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1520 |
| Overall Length (Decimal Inch) | 2.0625 |
| Overall Length (Inch) | 2-1/16 |
| Series | 205 |
| Web Thinning | Web-Thinned |
| Proprietary Coating/Finish | Bright/Uncoated |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-1/16 |
| Shank Length (Decimal Inch) | 1.0625 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Decimal Inch) | 1.0000 |
| Flute Length (Inch) | 1 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Wire) | #24 |
| Drill Bit Size (Decimal Inch) | 0.1520 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Slow |
| Flute Type | Slow Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1520 |
| Overall Length (Decimal Inch) | 2.0625 |
| Overall Length (Inch) | 2-1/16 |
| Series | 205 |
| Web Thinning | Web-Thinned |
| Proprietary Coating/Finish | Bright/Uncoated |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-1/16 |
| Shank Length (Decimal Inch) | 1.0625 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Decimal Inch) | 1.0000 |
| Flute Length (Inch) | 1 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
| MSC Part # | 70392808 |
| Mfr Part # | 20515200 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
