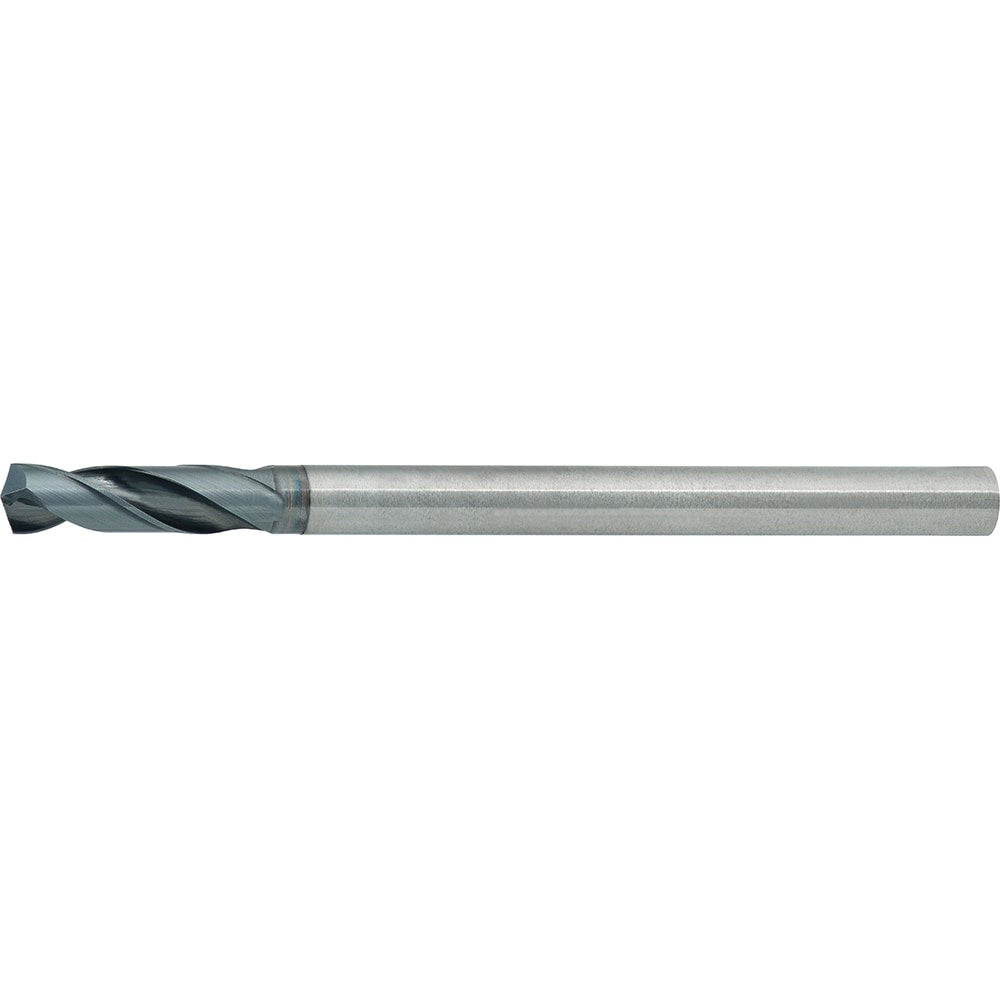

Extra Length Drill Bit: 0.4528", 140 °, Carbide
Item #: 71216295
Brand: Mitsubishi
Model #: 10609316
Product Specifications
| Drill Bit Size (mm) | 11.50 |
| Overall Length (mm) | 123.1000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 77.10 |
| Point Type | X-Thinning |
| Series | DWAE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Carbon Steel; Structural Steel; Iron; Steel; Tempered Steel |
| Secondary Workpiece Material Code | P; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.4528 |
| Drill Point Length (mm) | 2.10 |
| Drill Point Length (Decimal Inch) | 0.0827 |
| Overall Length (Decimal Inch) | 4.8465 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Shank Length (Decimal Inch) | 1.7323 |
| Shank Length (mm) | 44.000 |
| Flute Length (Decimal Inch) | 3.0354 |
| Flute By Diameter Ratio | 4xD |
| Maximum Drilling Depth (Decimal Inch) | 1.8937 |
| Maximum Drilling Depth (mm) | 48.10 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 11.50 |
| Overall Length (mm) | 123.1000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 77.10 |
| Point Type | X-Thinning |
| Series | DWAE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Carbon Steel; Structural Steel; Iron; Steel; Tempered Steel |
| Secondary Workpiece Material Code | P; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.4528 |
| Drill Point Length (mm) | 2.10 |
| Drill Point Length (Decimal Inch) | 0.0827 |
| Overall Length (Decimal Inch) | 4.8465 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Shank Length (Decimal Inch) | 1.7323 |
| Shank Length (mm) | 44.000 |
| Flute Length (Decimal Inch) | 3.0354 |
| Flute By Diameter Ratio | 4xD |
| Maximum Drilling Depth (Decimal Inch) | 1.8937 |
| Maximum Drilling Depth (mm) | 48.10 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| MSC Part # | 71216295 |
| Mfr Part # | 10609316 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
