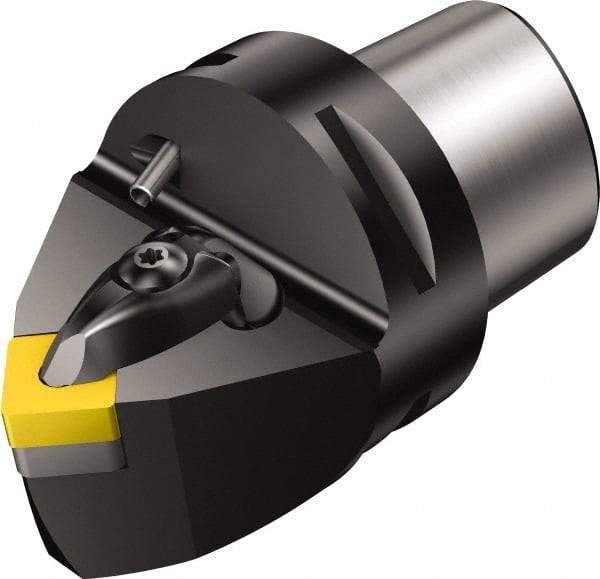

Sandvik Coromant - Neutral Cut, Size C5, SNMG 12 04 08 & SNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 0.3mm Ctr to Cutting Edge, Through Coolant, Series T-Max P
Item #: 68883610
Brand: Sandvik Coromant
Model #: 5728066
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Neutral |
| Insert Style | SNMG 12 04 08; SNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 0.30 |
| Center to Cutting Edge (Decimal Inch) | 0.0118 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | SNMG 432; SNMG 12 04 08 |
| Head Connection Size | C5 |
