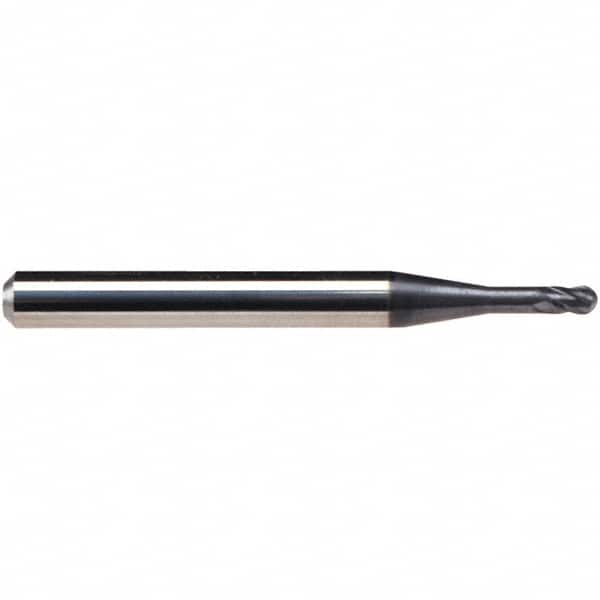

Ball End Mill: 2 Flute, Solid Carbide 57 mm OAL, 6 mm Shank Dia, TiAlN Coated, Series 2834A
Item #: 68680115
Brand: Emuge
Model #: 2834A.004
Product Specifications
| Mill Diameter (mm) | 4.00 |
| Length of Cut (mm) | 4.00 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball; Single |
| Extended Reach | No |
| Undercutting | No |
| Length Type | Stub |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 3.80 |
| Neck Length (mm) | 12.00 |
| Reach Length (mm) | 20.00 |
| Overall Length (mm) | 57.00 |
| Mill Diameter Tolerance | ?0.01 mm |
| Shank Diameter Tolerance | h5 |
| Maximum Helix Angle | 30.00 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 2834A |
| Number Of Flutes | 2 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
