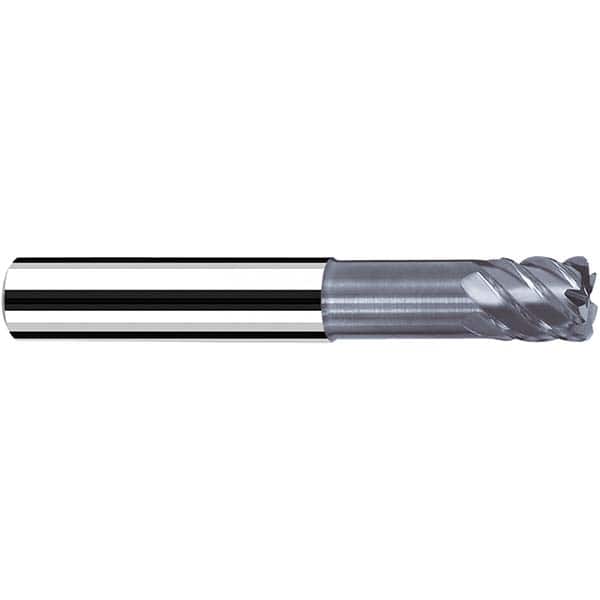

Corner Radius End Mill: 0.315″ Dia, 6 Flutes, Solid Carbide 45 ° Helix, Polychrome Coated, Corner Radius End, Centercutting, Series Multispeed
Item #: 68631001
Brand: Fraisa
Model #: P5250388
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Corner Radius (mm) | 0.05 |
| Length of Cut (mm) | 9.00 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 8.0000 |
| Overall Length (mm) | 63.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | Multispeed |
| Single Or Double End | Single |
| Coating/Finish | Polychrome |
