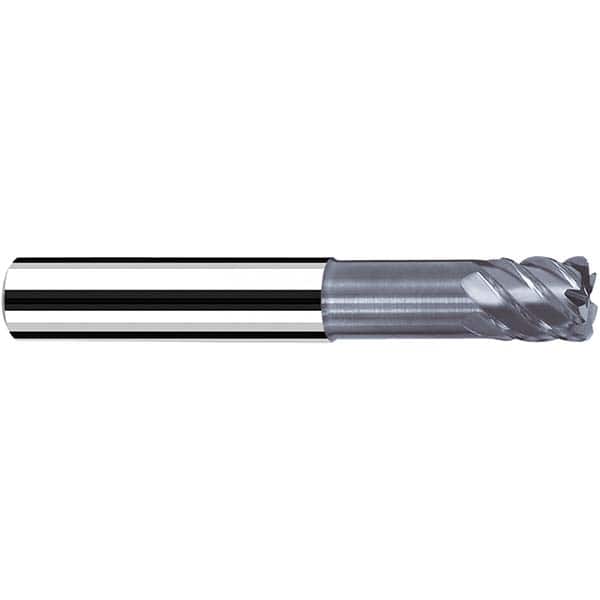

Corner Radius End Mill: 0.1575″ Dia, 4 Flutes, Solid Carbide 45 ° Helix, Polychrome Coated, Corner Radius End, Centercutting, Series Multispeed
Item #: 68630821
Brand: Fraisa
Model #: P5250220
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Corner Radius (mm) | 0.05 |
| Length of Cut (mm) | 5.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 6.0000 |
| Overall Length (mm) | 57.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | Multispeed |
| Single Or Double End | Single |
| Coating/Finish | Polychrome |
