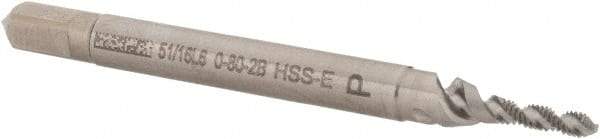

Walter-Prototyp - #0-80 UNF 2 Flute 2B Modified Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 1-5/8" OAL, Right Hand Flute, Right Hand Thread, Series A23517
Item #: 68623768
Brand: Walter-Prototyp
Model #: 5347954
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #0-80 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 2 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 1.6250 |
| Overall Length (Inch) | 1-5/8 |
| Overall Length (mm) | 41.28 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Material Grade | M35 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.2170 |
| Thread Length (mm) | 5.51 |
| Flute Type | Fast Spiral |
| Series/List | A23517 |
| Neck Length (Decimal Inch) | 0.0236 |
| Tapping Depth (Decimal Inch) | 0.2402 |
| Tapping Depth (mm) | 6.10 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (mm) | 3.58 |
| Square Length (Inch) | 3/16 |
| Material Application | Aluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metals; Spheroidal Cast Iron; Steel; Vermicular Cast Iron |
