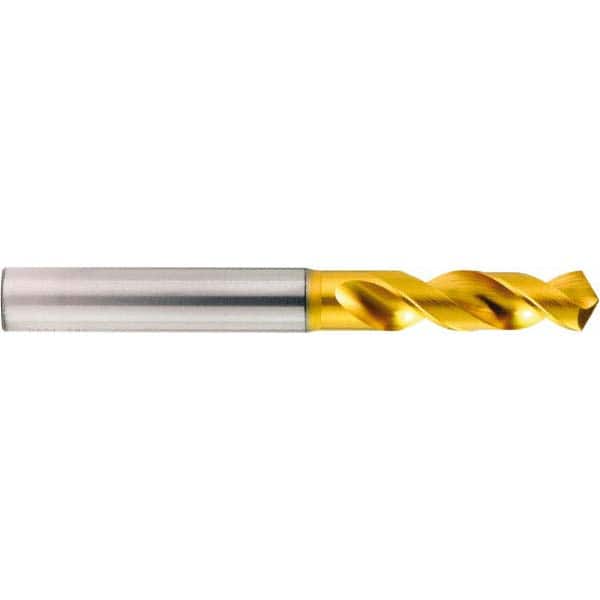

Screw Machine Length Drill Bit: 0.1295″ Dia, 130 °, Vanadium High Speed Steel TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1100
Item #: 68576362
Brand: OSG
Model #: 859532911
Product Specifications
| Drill Bit Size (mm) | 3.29 |
| Tool Material | Vanadium High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 130 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Drill Bit Size (Decimal Inch) | 0.1295 |
| Overall Length (mm) | 50.00 |
| Overall Length (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 4.00 |
| Series | 1100 |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute Length (mm) | 18.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
