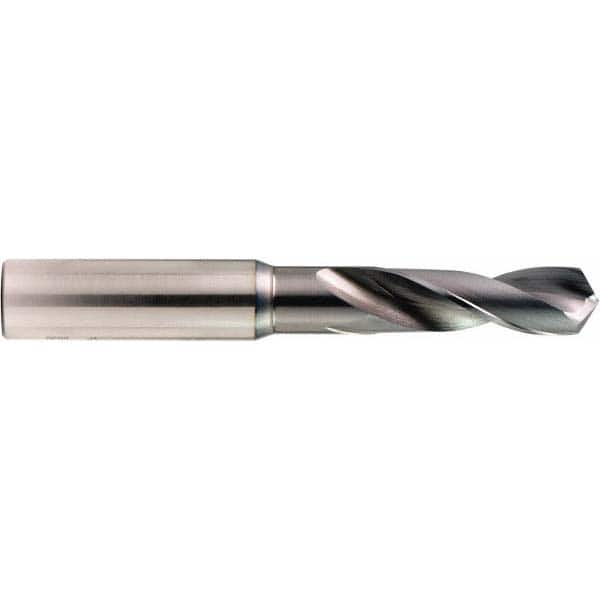

Screw Machine Length Drill Bit: 0.3209″ Dia, 130 °, Powdered Metal V Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1900
Item #: 68576032
Brand: OSG
Model #: 9598815
Product Specifications
| Drill Bit Size (mm) | 8.15 |
| Tool Material | Powdered Metal |
| Cutting Direction | Right Hand |
| Coating/Finish | V |
| Drill Point Angle | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3209 |
| Overall Length (mm) | 87.00 |
| Overall Length (Decimal Inch) | 3.4252 |
| Shank Diameter (mm) | 10.00 |
| Series | 1900 |
| Web Thinning | X-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute Length (mm) | 37.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
