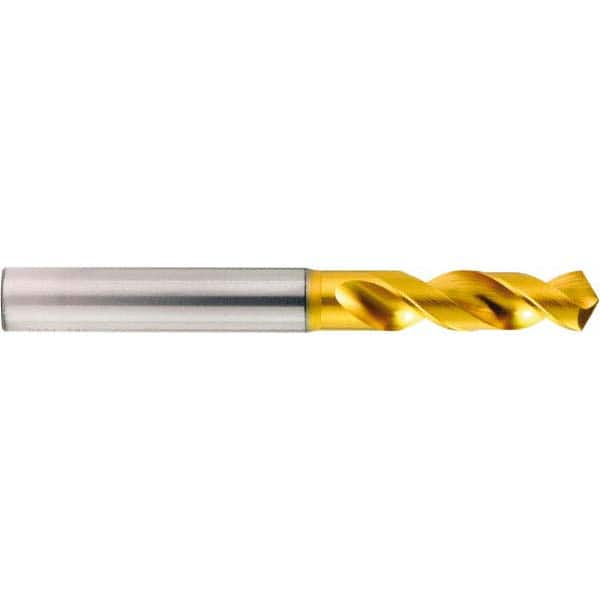

Screw Machine Length Drill Bit: 0.3228″ Dia, 120 °, Vanadium High Speed Steel TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1100
Item #: 68575695
Brand: OSG
Model #: 6158211
Product Specifications
| Drill Bit Size (Letter) | P |
| Tool Material | Vanadium High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 120 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3228 |
| Overall Length (mm) | 87.00 |
| Overall Length (Decimal Inch) | 3.4252 |
| Shank Diameter (mm) | 10.00 |
| Series | 1100 |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute Length (mm) | 37.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
