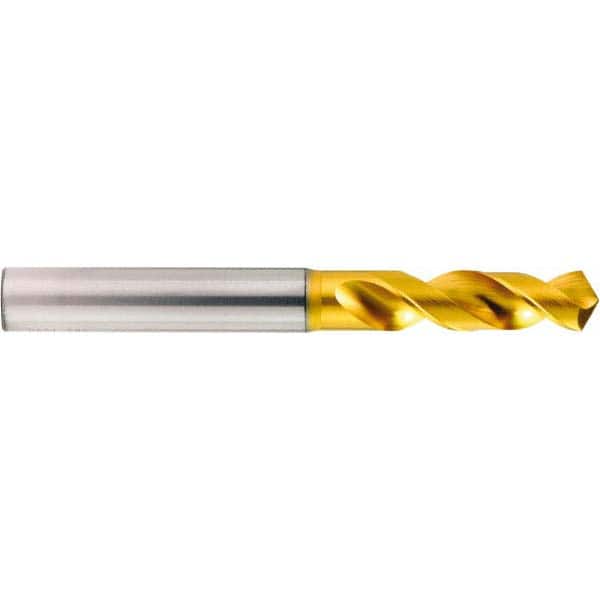

Screw Machine Length Drill Bit: 0.4331″ Dia, 120 °, High Speed Steel Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1100
Item #: 68575638
Brand: OSG
Model #: 6161011
Product Specifications
| Drill Bit Size (mm) | 11.00 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 120 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Overall Length (mm) | 104.00 |
| Overall Length (Decimal Inch) | 4.0945 |
| Shank Diameter (mm) | 12.00 |
| Series | 1100 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Point Type | Web-Thinned |
| Flute By Diameter Ratio | 5xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.027 mm |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
