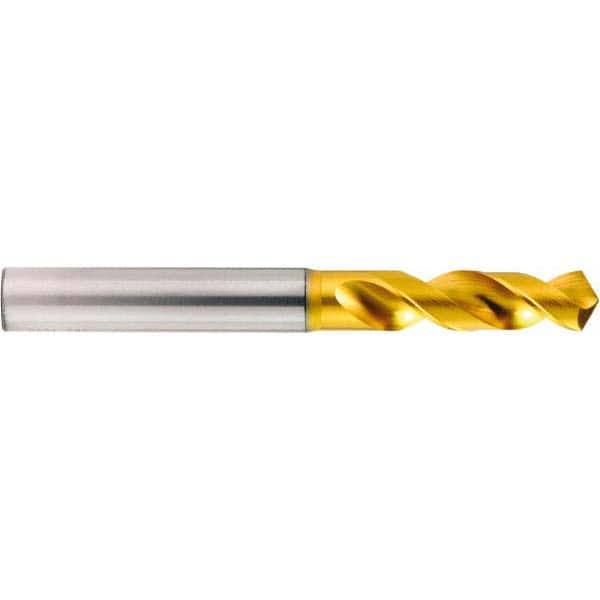

Screw Machine Length Drill Bit: 0.9055″ Dia, 120 °, Vanadium High Speed Steel TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1100
Item #: 68575380
Brand: OSG
Model #: 6173011
Product Specifications
| Drill Bit Size (mm) | 23.00 |
| Tool Material | Vanadium High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 120 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Drill Bit Size (Decimal Inch) | 0.9055 |
| Overall Length (mm) | 148.00 |
| Overall Length (Decimal Inch) | 5.8268 |
| Shank Diameter (mm) | 25.00 |
| Series | 1100 |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute Length (mm) | 72.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
