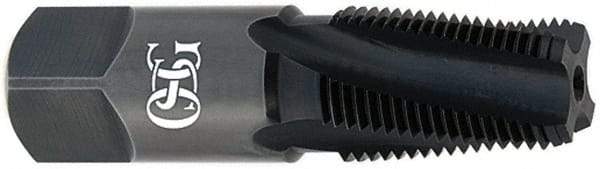

OSG - 3/8-18 NPT, 15° Helix, 4 Flutes, Bottoming Chamfer, TiCN Finish, High Speed Steel, Spiral Flute Pipe Tap - 0.7" Shank Diam, 1-1/16" Thread Length, 0.3750" Projection, 17/32" Square Size, Series S125
Item #: 68574243
Brand: OSG
Model #: 1251708
Exact Tooling IR#: 04
Features and Benefits
NPT (National Pipe Taper) refers to American National Standard Taper Pipe Threads. They are commonly used for general purpose applications and require a sealant.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-18 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | TiCN |
| Number of Flutes | 4 |
| Helix Angle | 15 |
| Overall Length (Inch) | 2-9/16 |
| Thread Length (Inch) | 1-1/16 |
| Series/List | S125 |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Square Size (Decimal Inch) | 0.5310 |
| Material Application | Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High Carbon Steel; Low Carbon Steel; Medium Carbon Steel |
| Projection (Decimal Inch) | 0.3750 |
| Chamfer | Bottoming |
