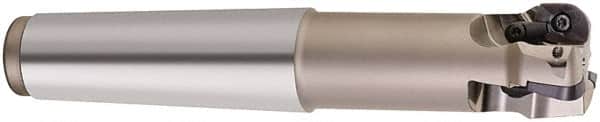

OSG - 50mm Cut Diam, 0.787" Max Depth, 42mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, ADMT20.. Insert, PDR Toolholder
Item #: 68567569
Brand: OSG
Model #: 7800013
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9790 |
| Maximum Depth of Cut (Decimal Inch) | 0.7870 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.6540 |
| Number of Cutter Inserts | 3 |
| Insert Style | ADMT20.. |
| Toolholder Style | PDR |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8430 |
