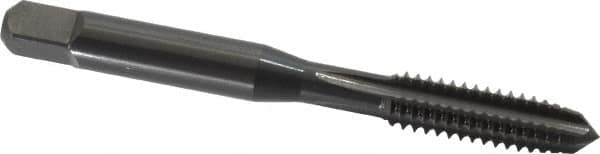

OSG - M3.5x0.60 Metric Coarse 6H 3 Flute Oxide Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 2" OAL, 11/16" Thread Length, D4 Limit, Oversize
Item #: 68557867
Brand: OSG
Model #: 1972601
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M3.5x0.60 |
| Class of Fit | 6H |
| Thread Limit | D4 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Inch) | 2 |
| Oversize | No |
| Series/List | 141 |
| Thread Length (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Aluminum; Cast Aluminum; Cast Iron; High Carbon Steel; Low Carbon Steel; Medium Carbon Steel |
