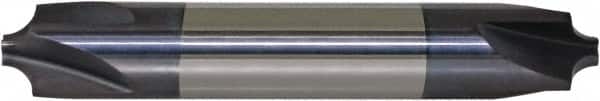

ProMax - 0.055" Radius, 1/4" Mill Diam, 4 Flute Solid Carbide Corner Rounding End Mill - Double End, AlTiN Finish, 2-1/2" OAL, 1/4" Shank Diam
Item #: 68529197
Brand: ProMax
Model #: 139-01644
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Single or Double End | Double |
| Radius (Inch) | 0.0550 |
| Radius (Decimal Inch) | 0.0550 |
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 4 |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/4 |
| Tip Diameter (Decimal Inch) | 0.1350 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
