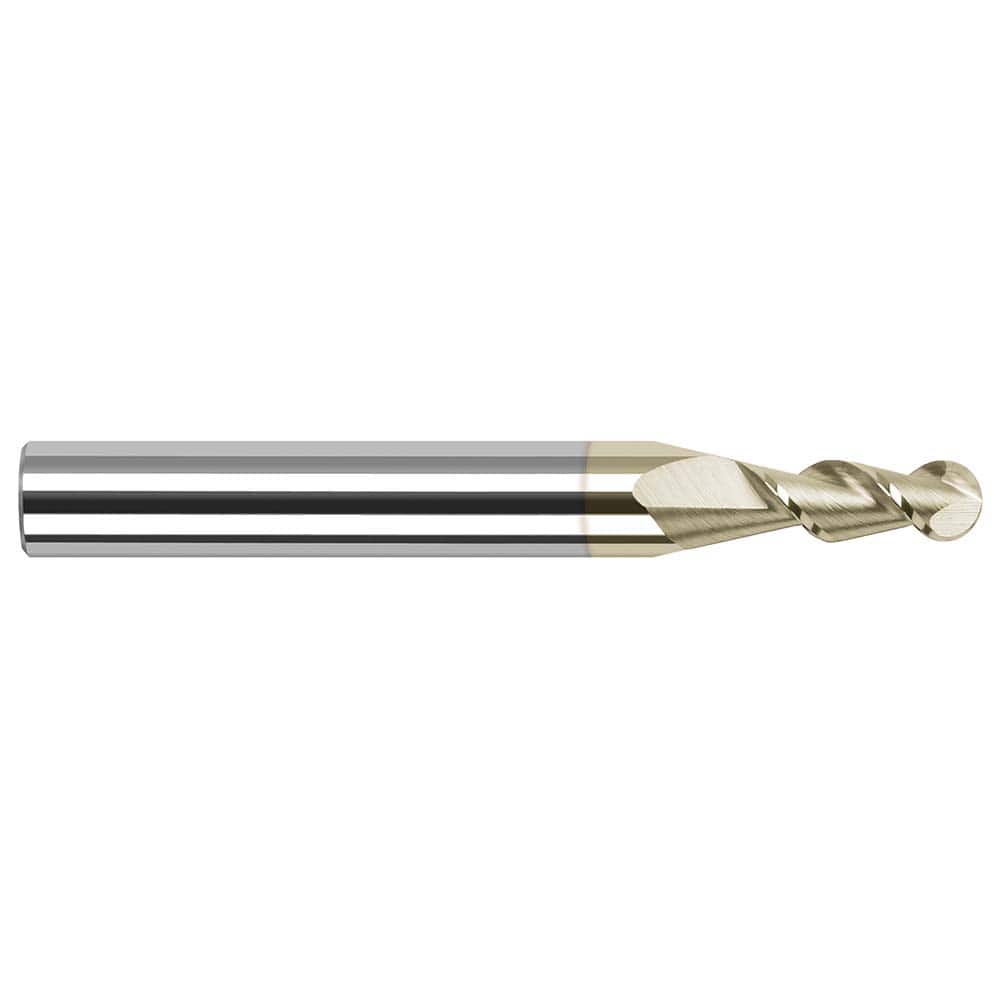

Ball End Mill: 0.08″ Dia, 0.24″ LOC, 2 Flute, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 45 ° Helix, ZrN Coated, Single End
Item #: 68480037
Brand: Harvey Tool
Model #: 27880-C7
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0800 |
| End Mill Material | Solid Carbide |
| Helix Angle | 45 |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Helix Style | High |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | ZrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2400 |
