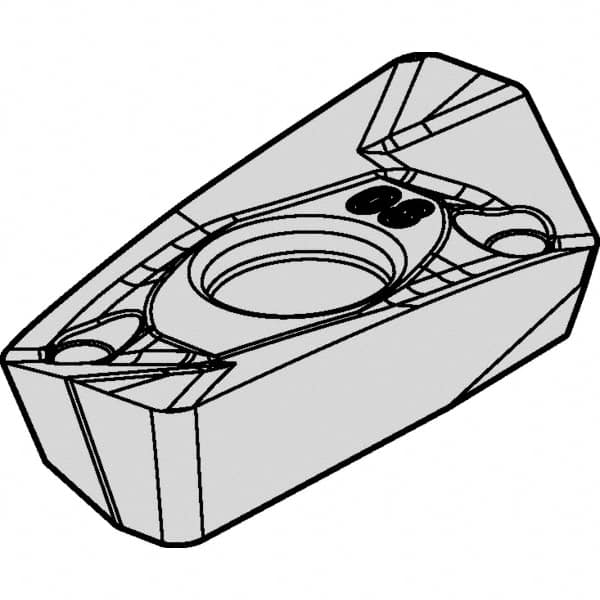

EC1408EGD KCPM40 Carbide Milling Insert TiAlN/AlCrN Finish, 0.688″ Long x 0.1772″ Thick x 0.334″ Wide
Item #: 68467406
Brand: Kennametal
Model #: 5545067
Product Specifications
| Insert Style | EC |
| Insert Size | 1408 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCPM40 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Ansi Code | EC1408EGD |
| Iso Code | EDCT140408PDERGD |
| Rake Angle | 15.00 |
| Chip Breaker | GD |
| Shape | Parallelogram |
| Coating Classification | Kennametal |
| Coating/Finish | AlCrN; TiAlN |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.3340 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1772 |
| Length (Decimal Inch - 4 Decimals) | 0.6880 |
