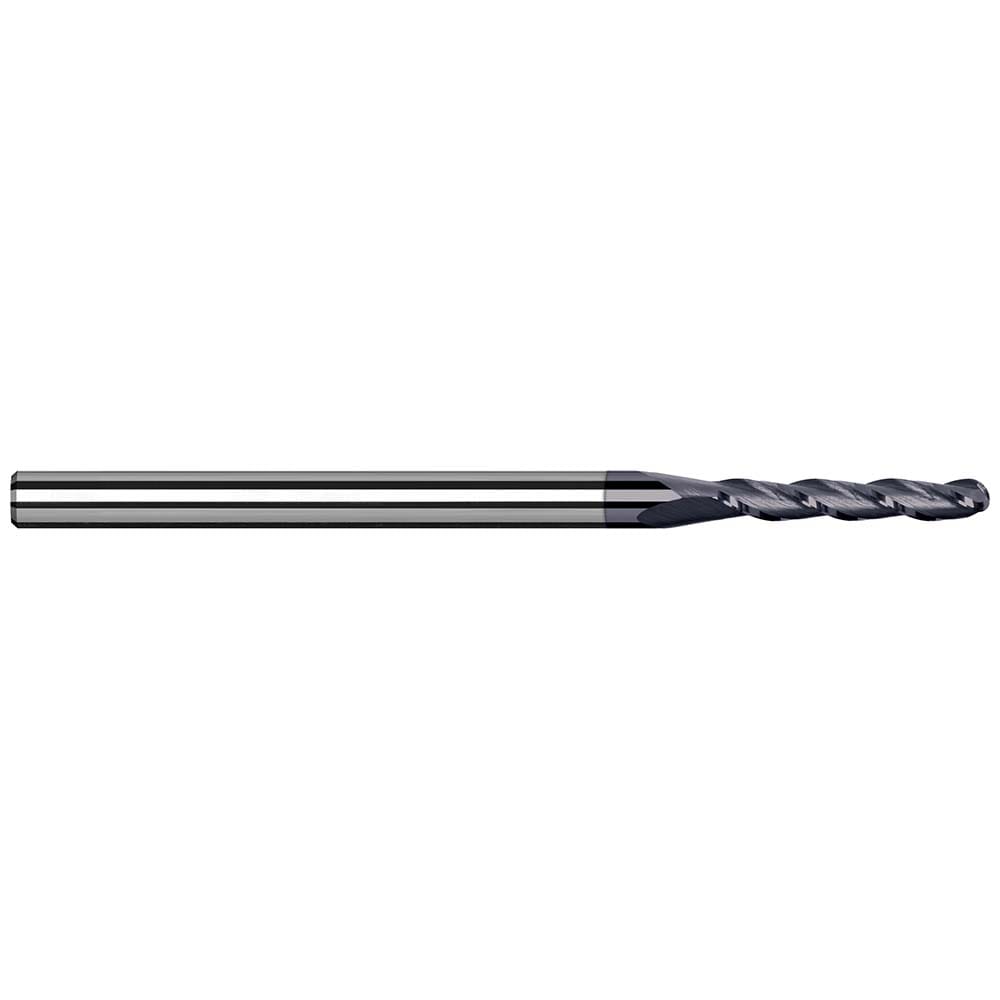

Ball End Mill: 1/32" Dia, 5/32" LOC, 3 Flute, Solid Carbide
Item #: 35964774
Brand: Harvey Tool
Model #: 930631-C6
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Mill Diameter (mm) | 0.80 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 5/32 |
| Coating/Finish | AlTiN Nano |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/8 |
| Extended Reach | No |
| Variable Helix | Yes |
| Variable Index | No |
| Helix Angle | 34 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Length Type | Long |
| Helix Style | Variable |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Nose Radius (Decimal Inch) | 0.0155 |
| Reach Length (Inch) | 5/32 |
| Reach Length (Decimal Inch) | 0.1560 |
| Mill Diameter Tolerance | +0.0005/-0.0005 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; H; K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Variable Helix End Mills for High Temp Alloys - Ball, Material Specific End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1560 |
| Manufacturers Catalog Number | 930631-C6 |
| System Of Measurement | Fractional Inch |
