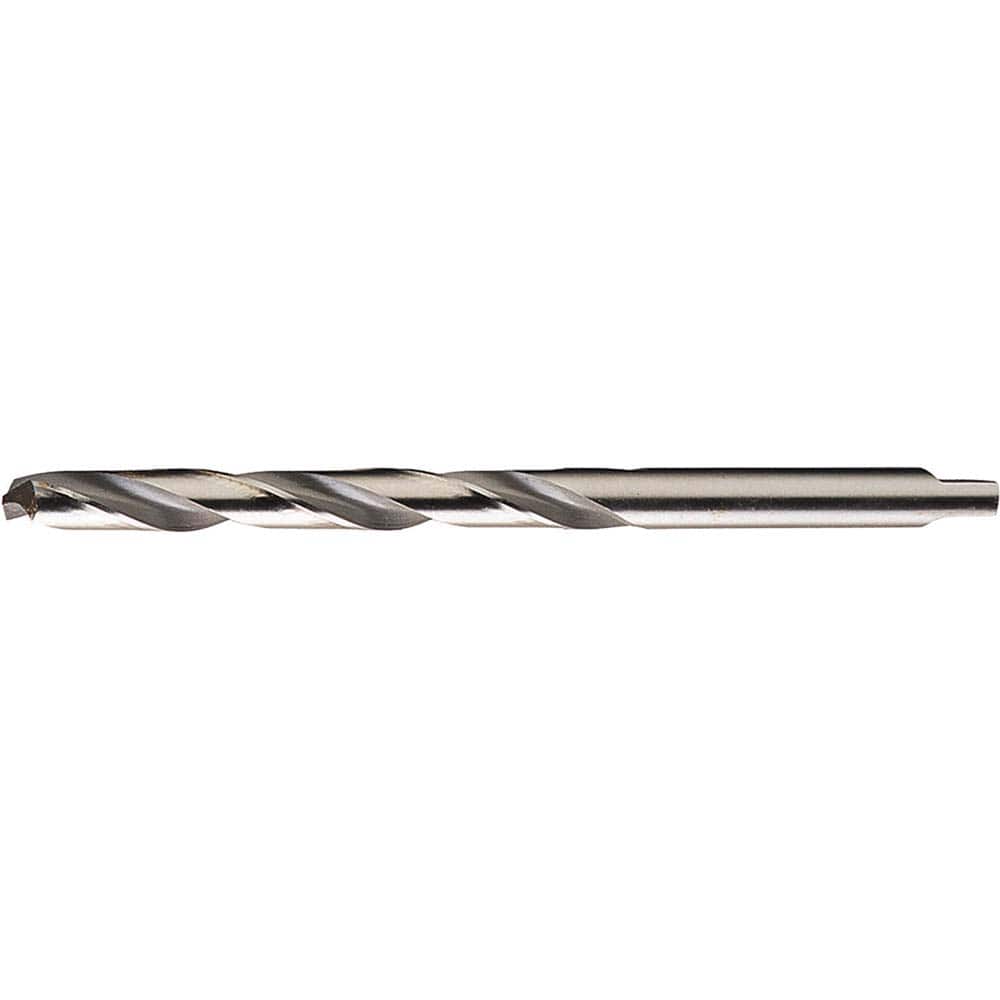

Taper Length Drill Bit: 118 ° Bright/Uncoated, 7″ OAL, RH Cut, Spiral Flute, Straight Shank, Series 2745
Item #: 68291988
Brand: Cleveland
Model #: C49119
Product Specifications
| Drill Bit Size (Inch) | 13/32 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 4-3/8 |
| Shank Type | Straight |
| Point Type | Standard |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (Inch) | 7.0000 |
| Shank Diameter (Inch) | 13/32 |
| Flute Length x Diamter Ratio | 4xD |
| Overall Length (Decimal Inch) | 7 |
| Cutting Direction | Right Hand |
| Series | 2745 |
| Shank Diameter (Decimal Inch) | 0.4062 |
| Flute Length X Diameter Ratio | 4xD |
| Shank Length (Decimal Inch) | 2.6250 |
| Web Configuration | Tapered |
| Drill Bit Grade | General Purpose |
| Spiral Type | Regular |
| Specification Designation | ASME |
| Material Application3 | Alloy Steel; Aluminum; Cast Iron; Carbon |
| Material Grade | M-2 |
| PSC Code | 5133 |
