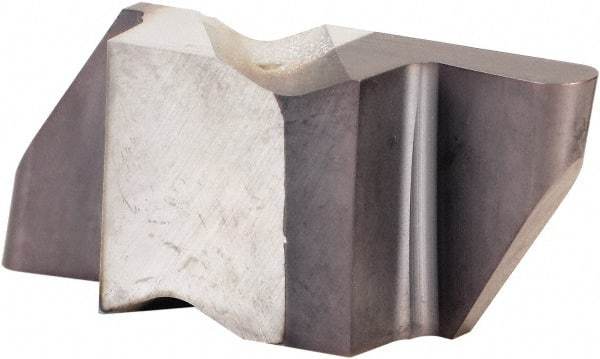

Kennametal - 4062NRD Grade KCU25, 3.18mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Right Hand, 1.59mm Corner Radius, AlTiN Finish
Item #: 68241546
Brand: Kennametal
Model #: 4109934
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NRD |
| Insert Size | 4062 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 11.51 |
| Cutting Height (Decimal Inch) | 0.4530 |
| Insert Seat Size | 4 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0626 |
| Coating Process | PVD |
| Overall Length (mm) | 28.38 |
| Overall Length (Decimal Inch) | 1.1175 |
| Series | Top Notch |
| Overall Width (mm) | 6.50 |
| Overall Width (Decimal Inch) | 0.2560 |
| Included Angle | 55 |
