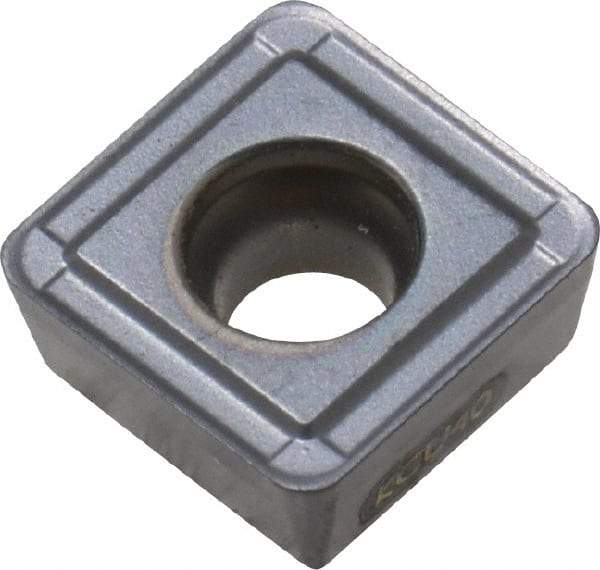

Kennametal - SPPX09T310 HP Grade KCU40 Carbide Indexable Drill Insert - TiN/TiAlN Finish, 0.369" Inscribed Circle
Item #: 68207471
Brand: Kennametal
Model #: 4042938
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiAlN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | SPPX |
| Insert Size | 09T310 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (Decimal Inch) | 0.3690 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Hole Diameter (Decimal Inch) | 0.1417 |
| Coating | TiN/TiAlN |
| Coating Process | PVD |
| Chipbreaker | HP |
