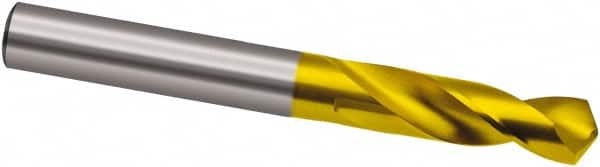

Guhring - 1.9mm 118° Spiral Flute High Speed Steel Screw Machine Drill Bit - TiN Finish, Right Hand Cut, 11mm Flute Length, 36mm OAL, Cone Relief Point, Straight Shank
Item #: 68193689
Brand: Guhring
Model #: 9006530019000
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0748 |
| Drill Bit Size (mm) | 1.90 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 11.00 |
| Overall Length (mm) | 36.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Cone Relief |
| Shank Diameter (mm) | 1.90 |
| Shank Diameter (Decimal Inch) | 0.0748 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | Heavy Duty |
| Material Grade | M2 |
| Series/List | 653 |
